Part No. 3T5-155
Reg Price $325.00
SALE PRICE $159.95
Simply, the Best Price Available

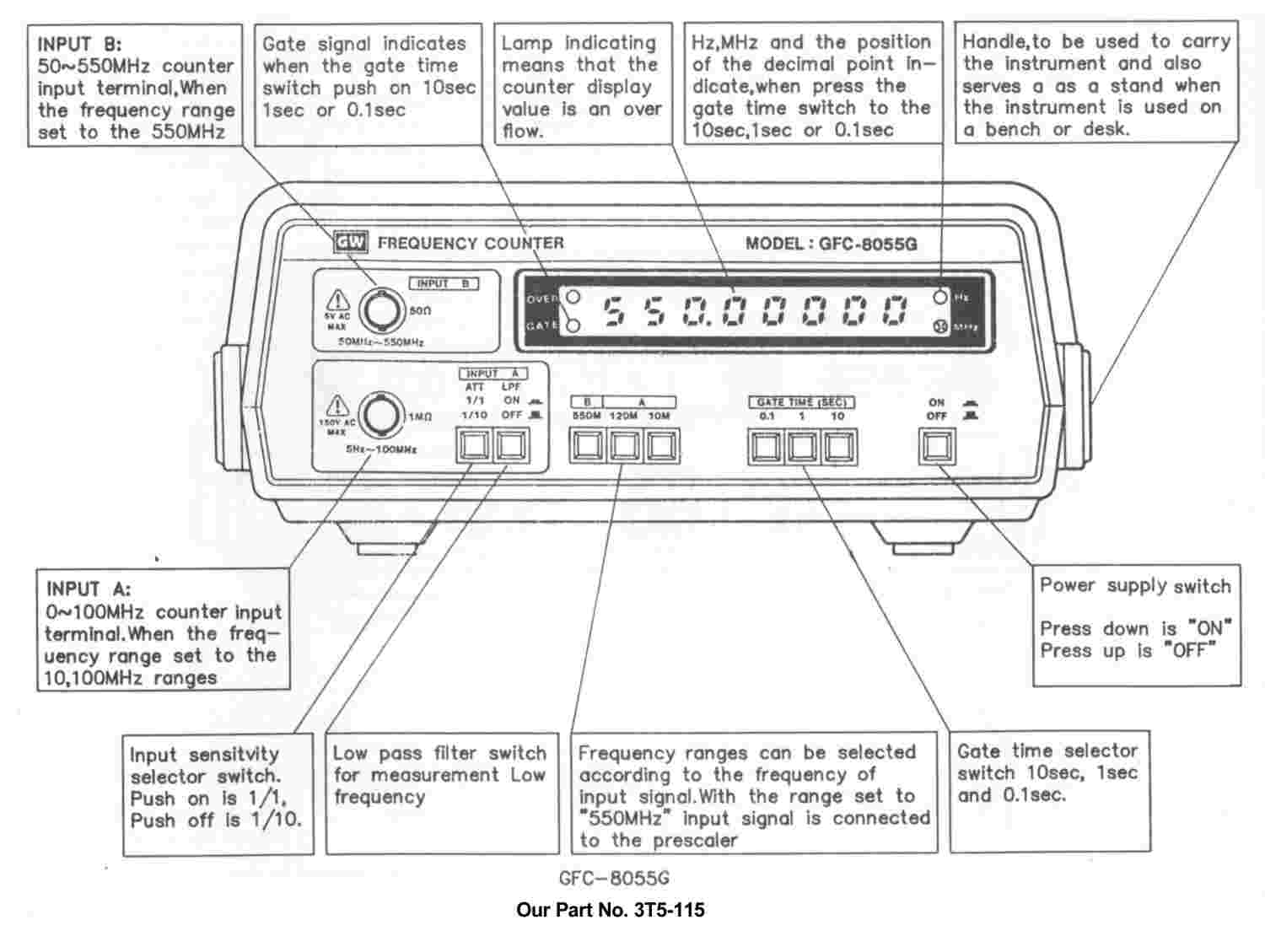

550MHz Frequency Counter
GW Model GFC-8055G
* High stability * 3 Frequency ranges 1Hz - 550MHz
* 8-digit 0.3" LED display * Over-flow indicator * Input Impedance: 1M ohm 35PF & 50 ohm
SPECIFICATIONS:
Input Impedance: 1M ohm 35 PF. Max. Input Voltage: 150V rms for 1M ohm, 5V rms for 50 ohm. Coupling System: AC Coupling.
Time Base: Oscillation frequency; 10MHz; Angling Rate: +-1 x 10 to -6th power/Month; Temperature Stability: 25 deg. C. +-5 deg. C. +-x10 to -6th power; 0 deg. C to 50 deg. C. +-2x10 to -6th power. Accuracy: +-(1 digit + Time base accuracy). Counting Capacity: 8 digit LED display (0.3"). Display System: Digital LED display with storage. Gate Time: 0.1sec, 1sec, 10sec switch selectable. Read Out: Hz or MHz with automatically positioned decimal point. Max. Resolution: 0.1Hz on 10MHz range with 10sec gate time; 1Hz on 100MHz range with 10sec gate time. Operating Temperature: 0-50 degrees C. Storage Temperature: -40-+70 degrees C. Power Source: AC 110/220/240V +-10% 50/60Hz. Accessories: Test lead GTL-101x1, Instruction manualx1. Dimensions (HxWxD): 95 x 245 x 280mm. Weight: 1.7kg
